Case Study: Detecting Stormwater Pipe Issues with the Testrix Bluebird 60HD Pan and Tilt Inspection Camera System

Introduction:

In Queensland, stormwater systems play a crucial role in managing rainwater runoff and preventing flooding, but over time, these systems can experience various issues, from blockages to structural damage. One such case occurred in a local council-managed stormwater pipe system, where a 600mm stormwater pipe began pushing up the road surface. This presented both an immediate challenge and potential risk to the integrity of the road and surrounding infrastructure. To diagnose and address the issue, the council turned to the Testrix Bluebird 60HD Pan and Tilt Pipe Inspection Camera System, a cutting-edge tool equipped with a full HD 1080P camera head to inspect the pipe and identify the underlying problems.

This case study delves into the process, technology, and outcomes of using the Testrix Bluebird 60HD for inspecting this stormwater pipe and solving a complex infrastructure issue.

The Problem:

The council received reports of visible road surface deformation above a 600mm stormwater pipe. Upon inspection, it was clear that the pipe was pushing the road surface upward, which could lead to further damage and potential road collapse if left unaddressed. Early assessments indicated that the stormwater pipe had either become structurally compromised or had a significant blockage, leading to uneven pressure and subsequent surface displacement.

With the stormwater system being essential for managing runoff during Queensland’s heavy rains, the council needed a precise and efficient method to pinpoint the exact issue without disrupting the surrounding infrastructure. The solution had to be non-invasive, accurate, and capable of navigating the pipe’s length to provide a comprehensive diagnosis.

The Solution:

The Testrix Bluebird 60HD was selected for this task due to its advanced capabilities in underground pipe inspection. The camera system is designed to inspect pipes of various sizes, ranging from small residential lines to large infrastructure pipes. It features a full HD 1080P camera for high-definition image capture, pan and tilt functionality for detailed viewing angles, and a push cable system to easily navigate the pipe’s interior.

The key advantages of using the Testrix Bluebird 60HD for this task were:

• High-definition imagery: The full HD 1080P camera allowed for crystal-clear images of the pipe’s internal condition, making it easier to spot structural issues, cracks, blockages, and any other abnormalities.
• Pan and tilt functionality: The camera’s ability to move both horizontally and vertically provided the flexibility to thoroughly inspect the full pipe circumference, even in hard-to-reach areas.
• Easy maneouverability: The camera’s lightweight and flexible cable ensured that it could traverse the entire 600mm stormwater pipe, regardless of potential bends or obstacles inside the pipe.
• Real-time data transmission: The system provided immediate access to inspection results, allowing the team to make informed decisions and adjust the inspection process as needed.

Inspection Process:

1. Preparation and Setup:
   The Testrix Bluebird 60HD system was set up at the access point of the stormwater pipe. This involved positioning the inspection camera's push cable and ensuring that the system was connected to the monitoring equipment, which included a high-definition monitor for real-time footage.
2. Camera Deployment:
   The team deployed the inspection camera into the stormwater pipe. Using the pan and tilt features, the camera was navigated through the pipe’s length, capturing high-definition footage along the way. The full HD 1080P resolution allowed the team to examine every detail of the pipe’s interior, including the condition of the pipe walls, joints, and any potential obstructions.
3. Identifying the Problem:

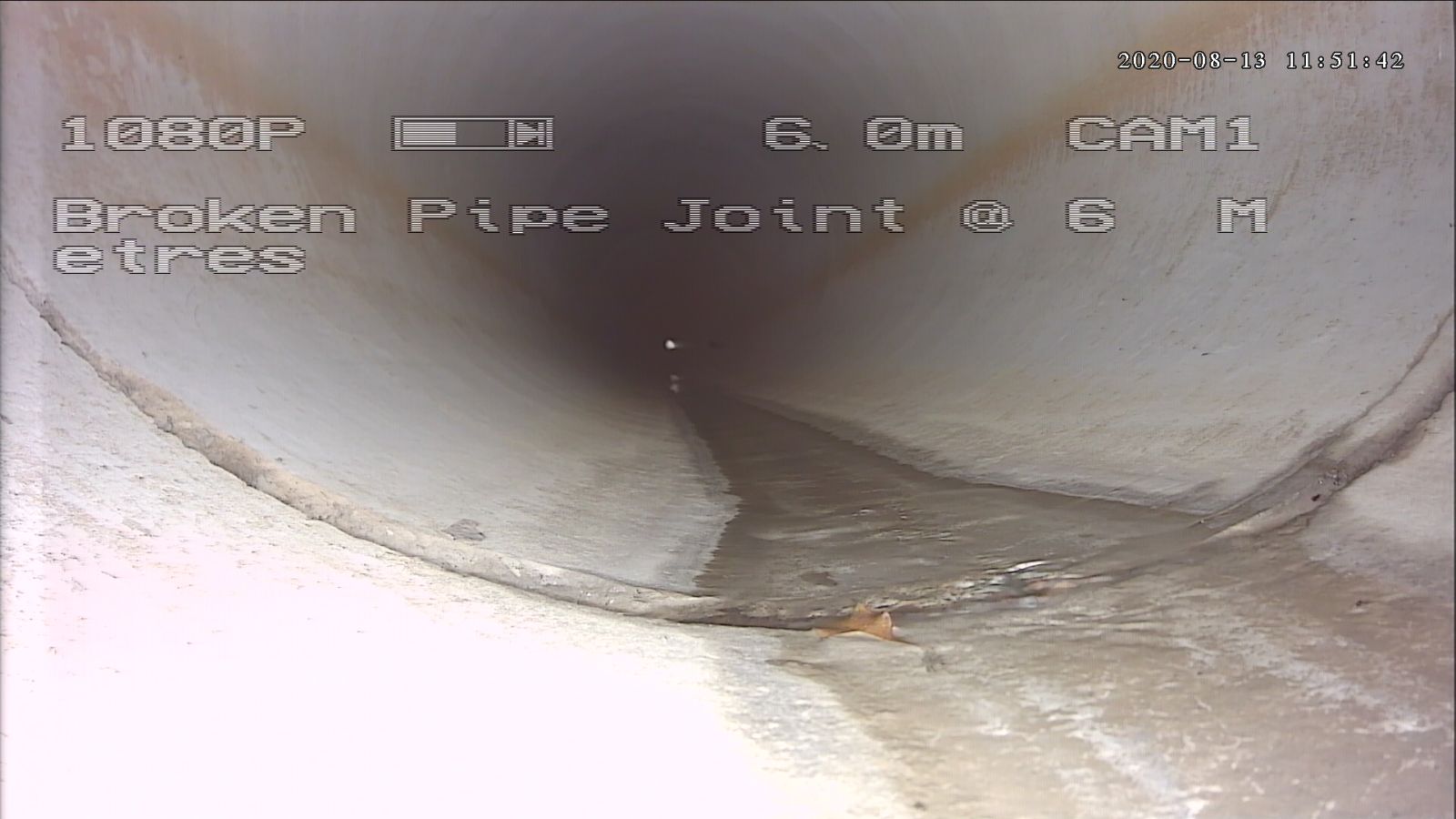

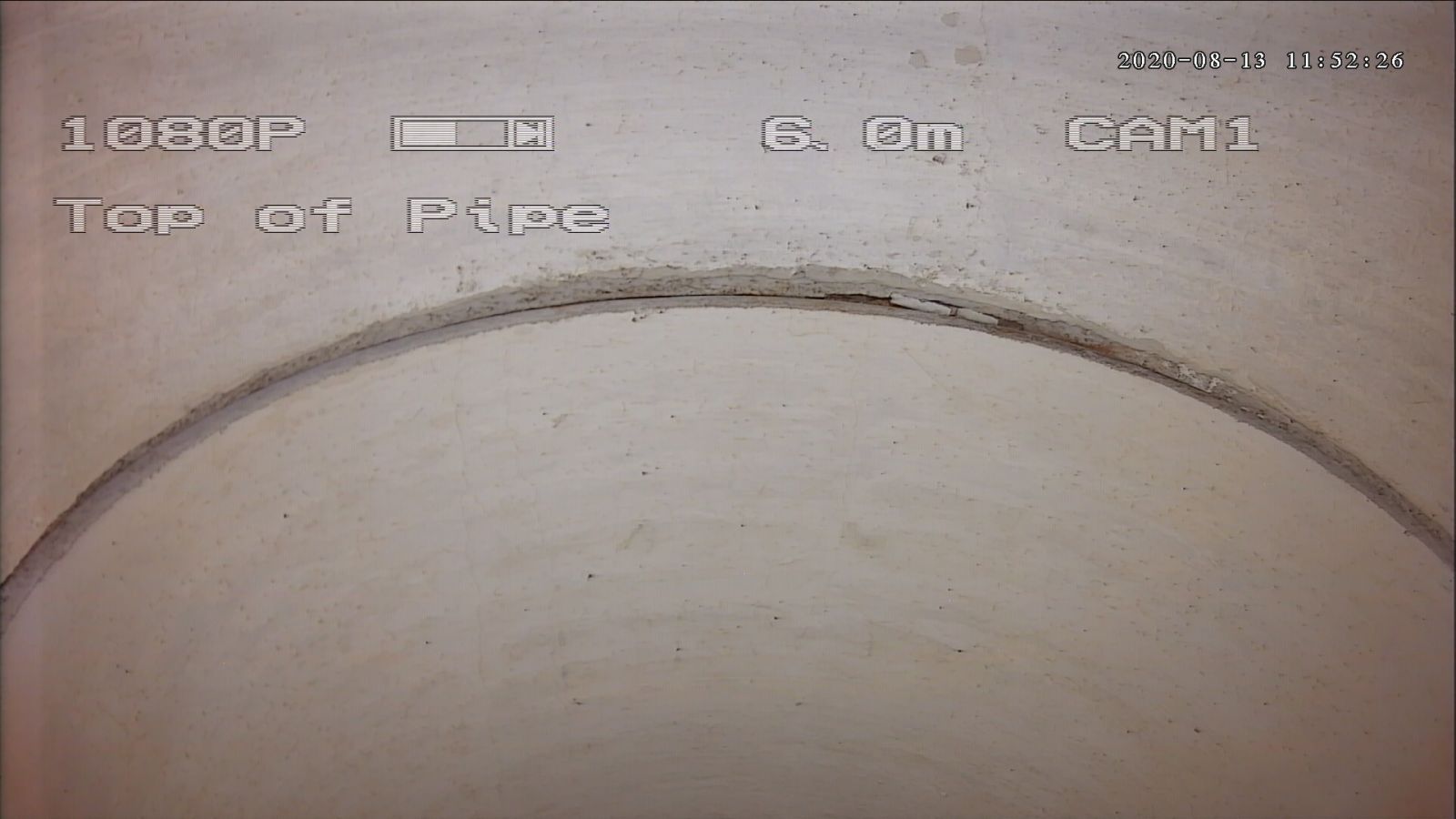

   As the camera moved along the 600mm pipe, it became clear that the road surface displacement was caused by a large crack in the pipe’s structure. The crack had widened significantly over time, allowing water to escape and exert pressure on the surrounding soil, causing the road surface to buckle. Additionally, the team discovered signs of partial blockage in certain sections of the pipe, likely exacerbating the issue by restricting water flow and increasing internal pressure.
4. Documenting and Analysing:
   The Testrix Bluebird 60HD’s real-time footage was recorded and analysed by the team. Key points of damage, including the location and size of the crack, as well as any blockages, were noted for further investigation. This data was invaluable for creating an accurate repair plan and understanding the full scope of the issue.
5. Final Assessment and Reporting:
   With the inspection complete, the team compiled a comprehensive report, including visual evidence from the camera’s footage, and presented it to the council. This report outlined the necessary repairs and provided a clear picture of the pipe’s condition.

Outcomes and Benefits:

The use of the Testrix Bluebird 60HD in this case provided several key outcomes and benefits:

• Accurate diagnosis: The high-definition camera enabled the team to precisely locate the crack and blockage, confirming the cause of the road surface displacement.
• Non-invasive inspection: The camera system allowed for a thorough inspection without the need for excavation or extensive digging, minimising disruption to the road and surrounding areas.
• Time efficiency: The entire inspection process was completed in a matter of hours, as opposed to traditional methods that may take days or involve more costly procedures.
• Cost savings: By identifying the exact problem early, the council could address the issue before it worsened, preventing more expensive and extensive repairs down the line.
• Data-driven decision making: The high-quality footage and detailed analysis allowed the council to make informed decisions about the necessary repairs, ensuring that the work could be carried out with a clear understanding of the pipe’s condition.

Conclusion:

The Testrix Bluebird 60HD Pan and Tilt Pipe Inspection Camera System proved to be an invaluable tool in diagnosing and addressing the issue with the 600mm stormwater pipe. Its advanced imaging capabilities, real-time feedback, and ease of use allowed the council to quickly identify the cause of the road surface deformation and plan an effective repair strategy. In the end, the use of this innovative inspection technology not only saved time and money but also ensured the long-term safety and functionality of the stormwater system, which is vital for managing Queensland’s heavy rainfall and flood risks.
