Case Study: Uncovering Pipe Problems with the Testrix Bluebird 120HD Pan and Tilt Pipe Inspection Camera System

Introduction

In the world of plumbing and drainage, efficiency and precision are crucial. Identifying issues within pipes—whether it’s blockages, cracks, or corrosion—requires tools that can navigate the complexity of pipe systems and provide clear, actionable insights. The Testrix Bluebird 120HD Pan and Tilt Pipe Inspection Camera System has emerged as a game-changing solution for professionals in the field of pipe inspection, offering full HD 1080P clarity and advanced features that make it the go-to choice for contractors, municipalities, and industrial applications.

In this case study, we explore how the Testrix Bluebird 120HD, equipped with a full HD 1080P camera head, helped a plumbing contractor solve critical pipe issues for a large commercial building. The camera's pan-and-tilt functionality, combined with its high-definition imaging, provided the contractor with unparalleled visibility into otherwise inaccessible areas. This case study demonstrates the practical benefits of using this advanced inspection technology to uncover and address issues in the pipe system.

The Challenge

A commercial building located in a busy urban area had been experiencing drainage issues for several months. The client, a property management firm, had received multiple complaints from tenants regarding slow drainage and occasional blockages in the building's sewage system. The building’s plumbing infrastructure, which included a series of underground pipes that connected to the municipal drainage system, had been in use for over 20 years.

Without the right diagnostic tools, pinpointing the source of the problem proved difficult. The property managers had contacted a local plumbing contractor, who was tasked with inspecting the pipes and identifying any underlying issues.

The Limitations of Traditional Methods

Traditionally, contractors would rely on basic visual inspections or, in some cases, manual methods like drain snaking to try and identify blockages. However, these approaches often fall short in large or complex systems where the problem might not be immediately visible or reachable. Furthermore, traditional methods often require digging up sections of the pipes, leading to costly and disruptive procedures for the property managers.

The plumbing contractor needed a more precise, non-invasive solution that would provide high-resolution images, be able to maneouver through narrow or difficult-to-reach sections of pipe, and ultimately identify the root cause of the issues. This is where the Testrix Bluebird 120HD came into play.

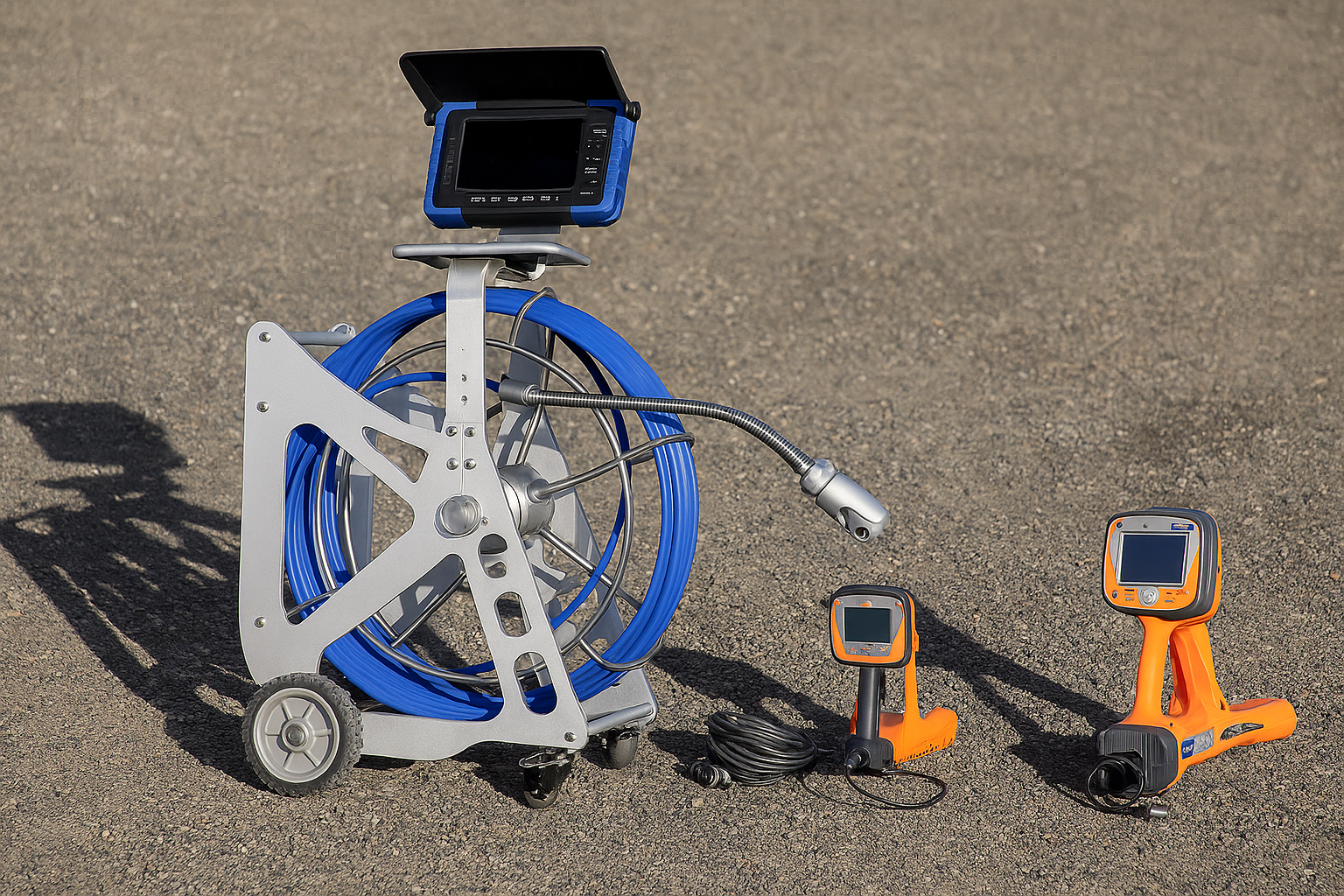

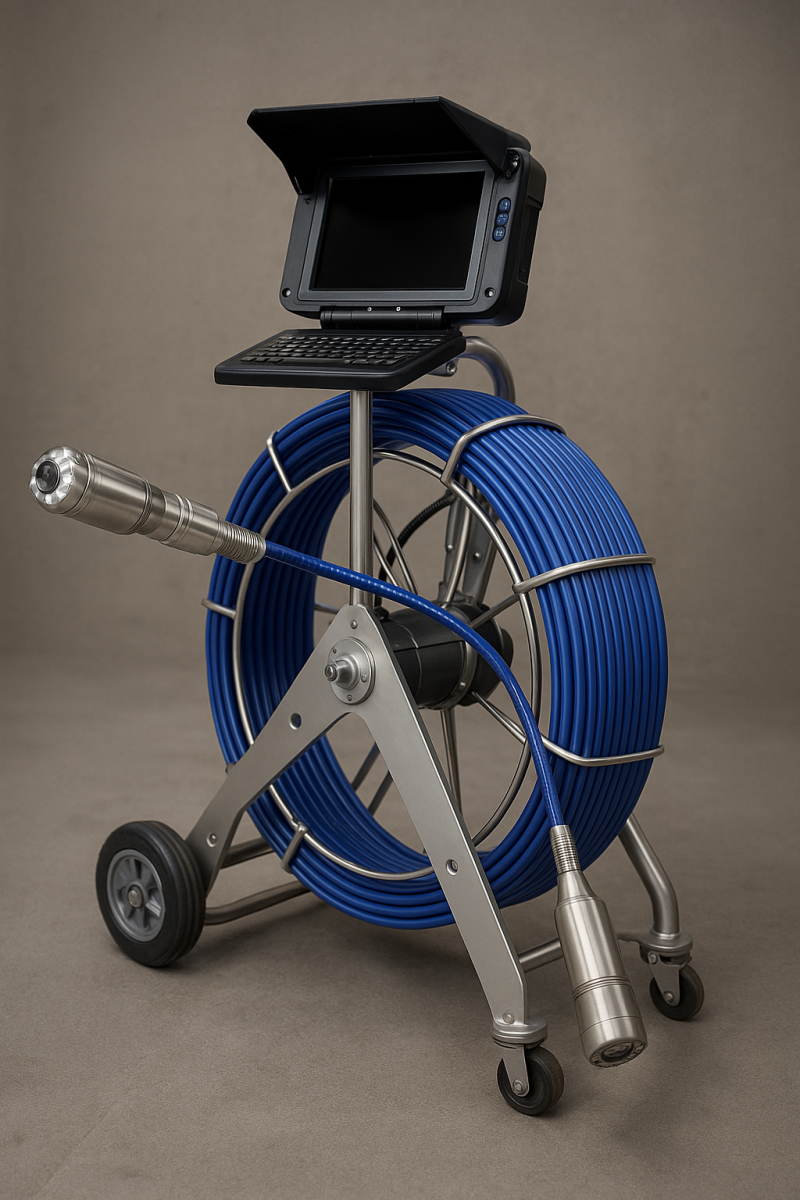

Solution: The Testrix Bluebird 120HD Pipe Inspection Camera System

Key Features of the Testrix Bluebird 120HD

1. Full HD 1080P Camera Head: The Bluebird 120HD is equipped with a full HD 1080P camera head that captures high-resolution images and videos, providing clear, detailed visuals of the interior of pipes. This level of clarity is essential for identifying minor defects like hairline fractures or corrosion that may go unnoticed with lower-resolution cameras.
2. Pan and Tilt Functionality: The pan-and-tilt camera head can rotate 360 degrees and tilt up and down, allowing the contractor to explore all angles of the pipe's interior. This capability is particularly valuable when inspecting complex pipe systems with bends and turns. The ability to adjust the camera’s angle allows for a thorough inspection, even in challenging or hard-to-reach spots.
3. Flexible Cable and Reel System: The Bluebird 120HD features a flexible yet durable cable that can navigate long distances and difficult bends within the piping system. The system’s integrated reel allows the user to control the cable length, ensuring efficient deployment and retrieval.
4. Real-Time Video Feedback: The camera system provides real-time video feedback on a high-resolution screen, allowing the contractor to view the inspection as it happens. This immediate feedback is essential for accurate and quick diagnosis, enabling the contractor to decide on the next steps without delay.
5. Built-In LED Lights: The camera head features built-in LED lights that illuminate the pipe’s interior, ensuring clear visibility even in dark or murky conditions. The adjustable lighting ensures that the camera can operate effectively in pipes of various diameters and environmental conditions.
6. Portable and Easy to Use: The Testrix Bluebird 120HD is lightweight and portable, making it easy to transport between job sites. The intuitive controls and user-friendly interface make the system accessible for operators of all skill levels.

Implementation: Using the Bluebird 120HD for Pipe Inspection

When the plumbing contractor arrived at the site, they immediately set up the Testrix Bluebird 120HD camera system. They began by inserting the camera into the building’s main sewage line, which had been experiencing the most significant issues. The camera’s flexible cable allowed them to feed it into the pipe without having to remove or disturb any sections of the plumbing.

As the camera advanced, the operator adjusted the pan-and-tilt function to explore different areas of the pipe. The contractor was able to get a full view of the interior, even in areas that would have been difficult to access using traditional inspection methods. The high-definition resolution of the camera revealed a variety of issues that were not immediately apparent.

Key Findings During the Inspection

1. Corroded Pipe Sections: The camera revealed several sections of pipe that were significantly corroded, particularly around the joints. This corrosion had been causing blockages and slow drainage due to restricted flow.
2. Tree Root Intrusion: In one section of the pipe, the camera showed evidence of tree roots intruding into the pipe. These roots had grown into the pipe over time, exacerbating the blockage problem and creating an environment for further decay and debris buildup.
3. Cracks and Leaks: The inspection revealed a small crack in one section of the pipe, which was allowing water to leak into the surrounding soil. While the crack wasn’t large enough to cause a significant issue at the moment, it had the potential to worsen over time, leading to major structural damage.
4. Sediment Build-Up: In some of the longer runs of the pipe, the camera showed significant sediment accumulation, which had been narrowing the effective diameter of the pipe and contributing to slow drainage.

With these findings, the plumbing contractor was able to provide a detailed report to the property management company, outlining the issues and offering targeted solutions.

Resolution: Targeted Pipe Repair and Maintenance

Based on the findings of the inspection, the contractor recommended the following steps:

1. Pipe Replacement: Sections of the corroded pipe would need to be replaced to restore full functionality and prevent future blockages.
2. Root Removal: A professional root removal service was suggested for the area where tree roots had infiltrated the pipes. This would prevent further damage and restore proper flow.
3. Crack Repair: The small crack found during the inspection could be sealed with epoxy to prevent further leakage and extend the lifespan of the pipe.
4. Sediment Removal: The contractor recommended a routine cleaning schedule to remove sediment build-up, ensuring the pipes remain clear and efficient.

By using the Testrix Bluebird 120HD, the contractor was able to efficiently pinpoint each problem and recommend the appropriate solutions. This not only saved time but also reduced the need for costly and disruptive excavation work.

Benefits of Using the Testrix Bluebird 120HD

1. Non-Invasive Inspection

The Testrix Bluebird 120HD provided a non-invasive way to inspect the pipes without the need for unnecessary digging or destruction of the property. The full HD clarity ensured that no potential issues were missed, allowing for timely and effective repairs.

2. Time and Cost Savings

By using the camera system, the contractor was able to perform the inspection quickly, reducing labor time and minimizing the need for costly exploratory digging. The accuracy of the inspection meant that repairs were more focused and targeted, preventing expensive surprises later in the process.

3. Improved Customer Satisfaction

For the property management company, the ability to offer a clear and precise report on the state of the pipes, complete with visual evidence, increased customer satisfaction. Tenants in the building were also able to see that the management was actively addressing their concerns and preventing further issues.

4. Enhanced Safety

The camera system allowed the contractor to inspect hard-to-reach areas without needing to place personnel in potentially hazardous environments. This minimized the risk of injury during the inspection process.

Conclusion

The Testrix Bluebird 120HD Pan and Tilt Pipe Inspection Camera System is a powerful tool for professionals in the plumbing and drainage industry. By providing high-definition, real-time visuals, this system allows for quick and precise identification of pipe issues, from blockages and corrosion to cracks and tree root intrusion. In this case study, it was evident that the Testrix Bluebird 120HD not only saved time and money but also improved the overall quality of service for both the contractor and the client.

For contractors looking to enhance their pipe inspection capabilities, the Bluebird 120HD offers an all-in-one solution that guarantees efficiency, accuracy, and ease of use.
