How to Choose the Right Thermal Imaging Camera - A Complete Buyer's Guide

Introduction

Choosing a thermal imaging camera isn’t just about picking the most expensive model or the one with the highest resolution. It’s about matching the right camera to the specific tasks you perform—whether you're inspecting switchboards, detecting HVAC leaks, or conducting preventive maintenance on machinery.

With so many models and technical terms on the market, it’s easy to feel overwhelmed. This guide will break down everything you need to know before buying a thermal imaging camera, helping you make a smart, future-proof investment.

What is a Thermal Imaging Camera?

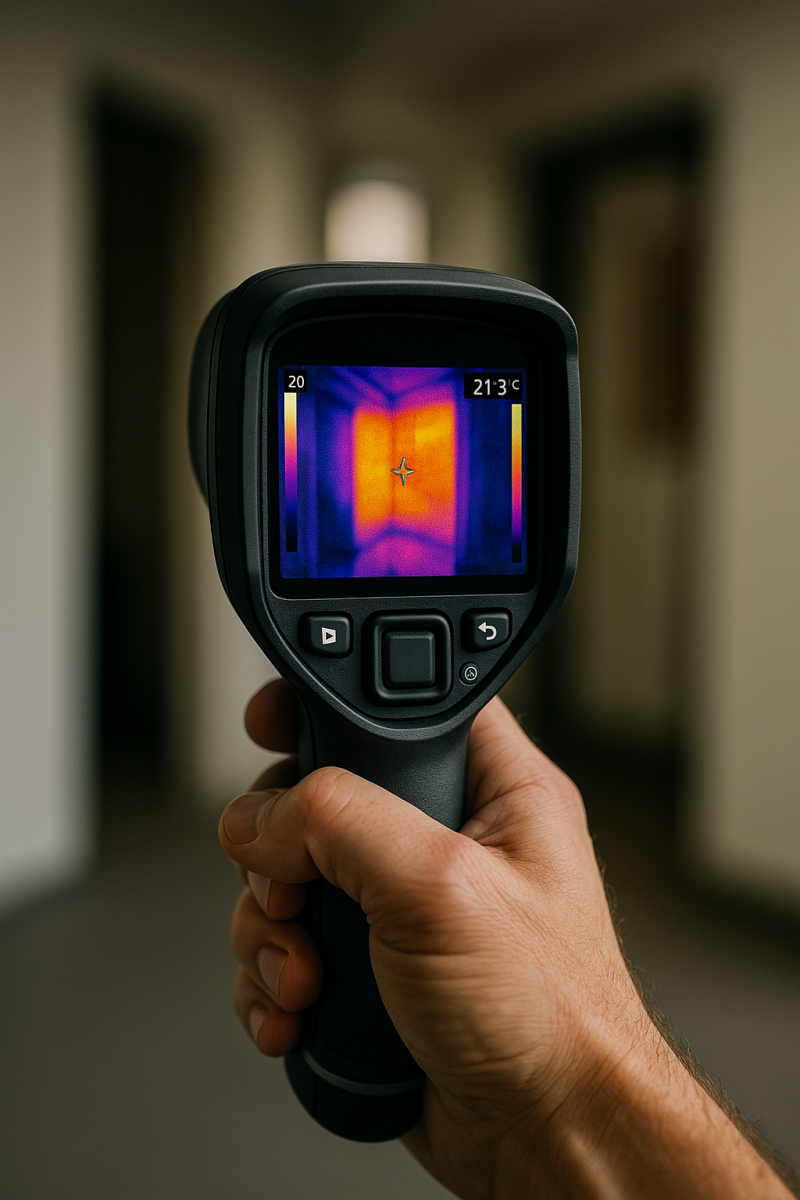

A thermal imaging camera, also known as an infrared camera or IR camera, captures heat (infrared radiation) emitted by objects and displays it as a thermal image. These cameras are used in:

• Electrical inspections
• HVAC and plumbing diagnostics
• Building envelope analysis
• Mechanical maintenance
• Firefighting and emergency response
• Scientific and R&D applications

By visualising temperature differences, thermal cameras help professionals identify faults, improve energy efficiency, and prevent equipment failures.

Why Choosing the Right Thermal Camera Matters

Choosing the wrong camera can lead to:

• Missed faults due to poor resolution
• Inaccurate readings from insufficient temperature range
• Wasted investment on features you don’t need

The right camera ensures accurate diagnosis, faster inspections, better reporting, and a high ROI for your business.

Key Factors to Consider When Choosing a Thermal Imaging Camera

1. Thermal Resolution (Detector Size)

This determines how detailed your thermal images will be. The higher the resolution, the more precise your inspection.

2. Temperature Range

Choose a temperature range suited to your environment:

• -20°C to 150°C: Ideal for HVAC and building inspections
• -20°C to 650°C: Great for electrical systems and motors
• Up to 2000°C: Required for furnaces, kilns, heavy industry

3. Sensitivity (NETD)

NETD (Noise Equivalent Temperature Difference) measures how small a temperature difference the camera can detect. Lower NETD values mean better sensitivity.

• < 60 mK = High sensitivity
• 60–100 mK = Standard
• > 100 mK = Low-end cameras

Look for values like < 50 mK if you need to detect subtle issues like air leaks or loose electrical contacts.

4. Lens and Field of View

• Wide-angle lenses: Better for close-up inspections in tight spaces
• Narrow/telephoto lenses: For inspecting targets from a distance (like overhead transformers or electrical substations)

Some high-end models offer interchangeable lenses for added versatility.

5. Focus Type

• Fixed Focus: Quick and simple, best for short-range work
• Manual Focus: More control for precise inspections
• Auto Focus: Ideal for frequent inspections and variable distances

Pro Tip: Manual focus is better when capturing images for professional reports.

6. Image Overlay & Fusion Features

Many modern cameras include visual light + infrared fusion modes:

• Fusion (Overlay)
• Picture-in-picture (PiP)
• Thermal blending

These make reports easier to understand and help visually pinpoint the fault on a real image.

7. Connectivity and Reporting Tools

• Wi-Fi or Bluetooth for mobile syncing and app control
• USB and SD card for file transfer
• Cloud-based reporting platforms for real-time collaboration
• Look for brands that offer dedicated apps and software (like HIKMICRO Analyser)

8. Durability and IP Rating

Field inspections can be rough—look for:

• Drop-test rating (≥ 2 m)
• IP54 or IP65 rating for dust and water resistance
• Operating temperature range (-10°C to 50°C or more)

Top Thermal Imaging Camera Brands to Consider

HIKMICRO

Affordable and reliable, gaining traction fast. Excellent performance and warranties

• Popular Models: HIKMICRO M31, G61, Pocket 2
• Best for: Building diagnostics, electrical and mechanical users

Fotric Thermal Cameras

Advanced analytics and AI-powered reporting tools.

• Popular Models: TD3-LD, 345A
• Best for: R&D, predictive maintenance, industrial applications

FLIR Systems (Teledyne FLIR)

Known for compact handheld and industrial-grade thermal cameras but expensive. Dated product range.

• Popular Models: FLIR E8-XT, FLIR C5, FLIR T840
• Best for: HVAC techs, inspectors

Testo Thermal Cameras

Well-suited for building inspections and HVAC. Not as well known.

• Popular Models: Testo 883, Testo 868
• Best for: Facility managers, energy auditors

Thermal Camera Feature Comparison Table

Who Needs a Thermal Imaging Camera?

• Electricians – Detect overheating in switchboards, breakers, and cabling
• HVAC Technicians – Find leaks, blocked vents, and insulation issues
• Building Inspectors – Identify dampness, insulation defects, or heat loss
• Mechanical Engineers – Spot worn bearings or unbalanced loads
• Solar Installers – Check for faulty panels and hot spots

Bonus Tips Before Buying

✅ Check if the model is compliant with ISO or IEC standards
✅ Ask for a demo or sample images in real-world use
✅ Consider future-proofing with interchangeable lenses
✅ Compare warranty, training support, and software updates

Conclusion: Choose with Purpose, Not Just Specs

When buying a thermal imaging camera, don't just chase the highest resolution or fanciest features—choose what matches your inspection needs. Whether you're a seasoned professional or just getting started, the right thermal camera will save time, reduce costs, and boost your diagnostic accuracy.

Need Expert Help Choosing a Thermal Imaging Camera?

We supply a full range of thermal cameras from leading brands including HIKMICRO, and Fotric, but we have supplied other brands over the years. In our opnion, the HIKMICRO range of thermal imaging cameras offer unrivalled performance and price. Get in touch with our experts for tailored advice, or to compare models side by side.
