Unlocking the Subsurface: A Comprehensive Guide to Ground Penetrating Radar (GPR) and the Sensors & Software LMX Series

Introduction to Ground Penetrating Radar (GPR)

Ground Penetrating Radar (GPR) is a non-destructive geophysical technology that uses radar pulses to image the subsurface. It's widely used across industries such as construction, utility locating, archaeology, environmental studies, and geotechnical engineering. Whether you’re trying to locate underground utilities before excavation, inspect concrete structures, or investigate environmental sites, GPR delivers reliable and rapid subsurface data without digging or drilling.

As demand for precision, speed, and safety continues to rise, Sensors & Software’s LMX Series — LMX100™, LMX150™, and LMX200™ — has become the go-to solution for professionals seeking accurate underground insights.

What is GPR and How Does It Work?

Ground Penetrating Radar works by transmitting high-frequency radio waves into the ground. When these waves encounter a buried object or a change in material (e.g., from soil to concrete), they reflect back to the surface and are recorded by the system’s receiver. The data is then processed into visual outputs or maps of the subsurface.

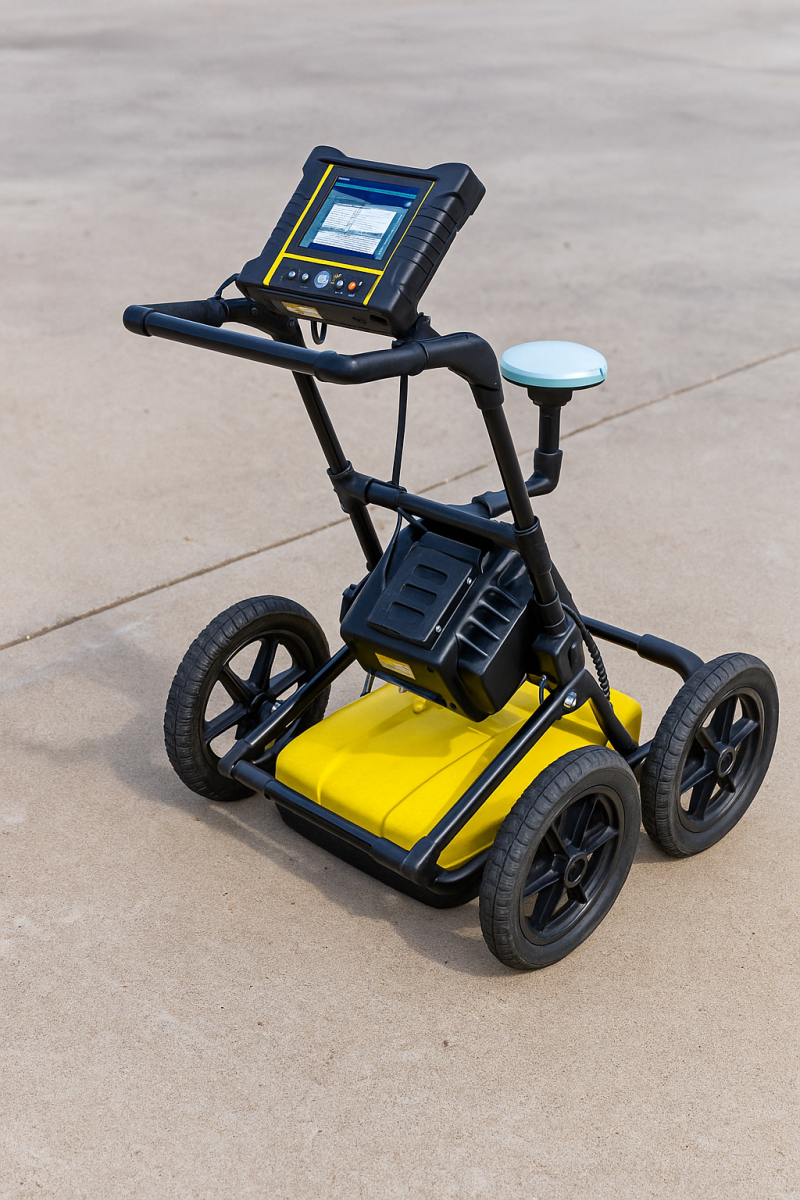

Key components of a GPR system:

• Antenna (emits radar pulses)
• Control unit (collects and processes data)
• Display (visualizes the results)
• Wheels/Cart (for mobility and ease of scanning)

Benefits of Ground Penetrating Radar

1. Non-Destructive Investigation

GPR eliminates the need for intrusive digging or coring, preserving site integrity and reducing associated risks.

2. Real-Time Data Collection

Operators can view live scans while surveying, allowing for immediate decisions and on-the-spot interpretations.

3. High Accuracy

Modern GPR systems, like the LMX series, deliver exceptional accuracy, often within a few centimetres, making them ideal for precision tasks like utility locating or structural analysis.

4. Improved Safety

By locating buried utilities or voids before excavation, GPR helps prevent injuries, equipment damage, and service disruptions.

5. Broad Material Compatibility

GPR can detect objects in various media, including soil, concrete, asphalt, and ice. It can locate:

• Metal and non-metal pipes
• Conduits
• Voids and sinkholes
• Rebar and post-tension cables
• Rock and groundwater interfaces

6. Cost-Effective

Avoiding service interruptions, legal liabilities, and rework makes GPR an economical solution for many industries.

GPR Applications Across Industries

1. Utility Locating

One of the most common applications, especially before excavation, trenching, or directional boring. GPR helps locate:

• Gas lines
• Water pipes
• Electric and telecom cables
• Stormwater infrastructure

2. Construction and Engineering

GPR helps engineers assess ground conditions, detect voids, map reinforcing bars, or verify structural integrity in concrete.

3. Archaeology and Forensics

GPR is invaluable for non-invasive exploration of archaeological sites and forensic investigations to locate unmarked graves or buried evidence.

4. Environmental and Geotechnical Studies

GPR aids in soil layer profiling, contamination mapping, and geological surveying.

5. Transportation Infrastructure

From roadbed and railway analysis to bridge deck inspections, GPR is used to assess subsurface conditions.

Why Choose the Sensors & Software LMX Series?

Sensors & Software, a leading manufacturer of GPR systems, designed the LMX series to provide unmatched utility detection and mapping solutions. Here’s a breakdown of their three flagship systems:

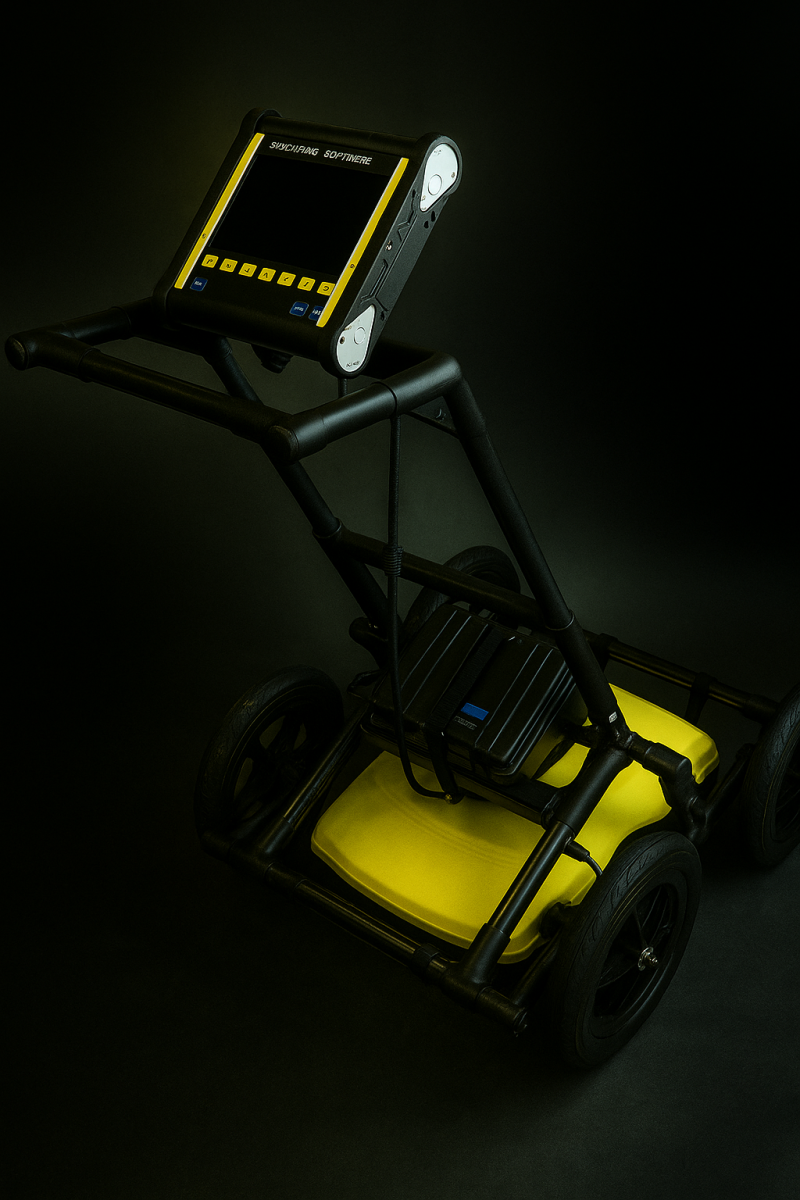

LMX100™ Ground Penetrating Radar

Overview:

The LMX100 is an entry-level yet robust GPR solution designed for locating metallic and non-metallic utilities.

Key Features:

• Single Frequency Antenna (250 MHz)
• Real-time data visualization on a sunlight-readable display
• Depth detection up to 6 meters (depending on soil conditions)
• LineTrac™ optional module for locating power signals from live AC lines
• Simplified controls for ease of use
• IP65-rated, rugged construction for field durability

Ideal For:

• Utility locators
• Municipal contractors
• Surveyors who need a quick and reliable scan without high-end mapping features

Benefits:

• Affordable and accessible for smaller teams
• Lightweight and portable
• Low training curve

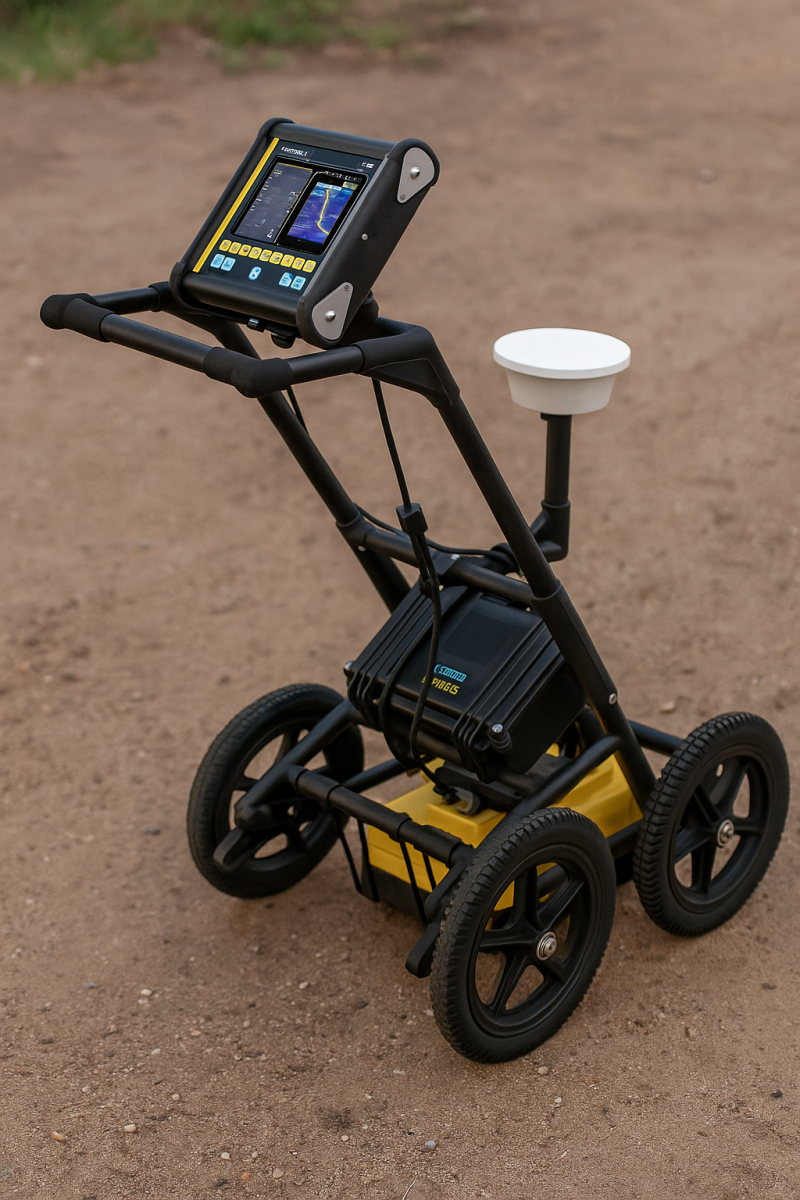

LMX150™ Ground Penetrating Radar

Overview:

The LMX150 builds on the LMX100 platform by adding increased data capabilities and mapping functions, making it ideal for professionals who need better documentation and more in-depth analysis.

Key Features:

• 5000 MHz antenna with optimized depth penetration
• Integrated GPS for mapping and data logging
• Optional external GPS for higher precision
• Data export capabilities (USB, Wi-Fi)
• Depth detection up to 3 meters (depending on soil conditions)

Ideal For:

• Engineering consultants
• Subsurface utility engineers
• Environmental and geophysical surveys

Benefits:

• Balance of power and affordability
• Adds GPS-based mapping for better reporting
• Suitable for both routine and moderately complex jobs

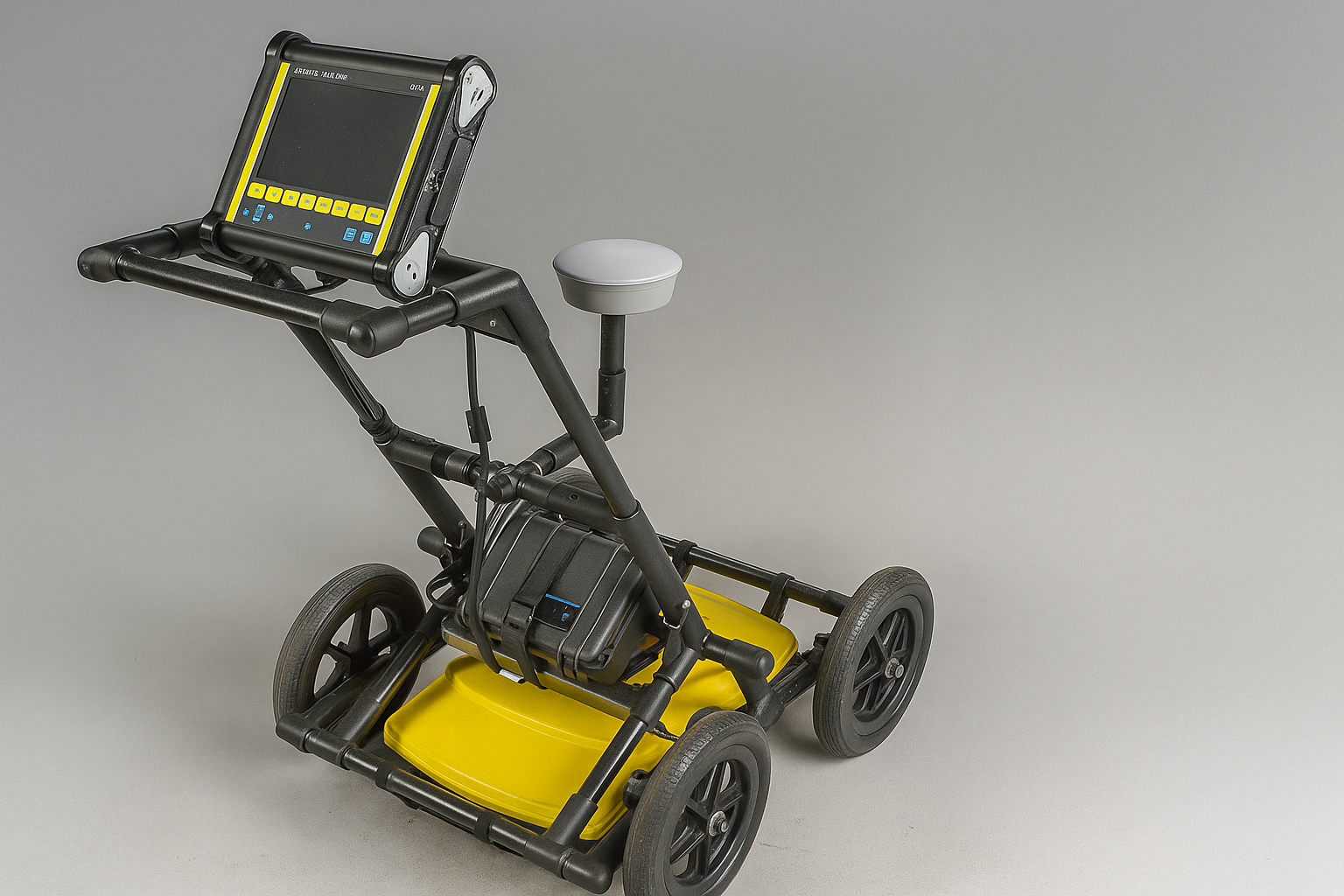

LMX200™ Ground Penetrating Radar

Overview:

The LMX200 is the most advanced unit in the LMX series, offering powerful imaging, enhanced data processing, and multiple interpretation tools.

Key Features:

• Full-featured interface
• Enhanced data collection modes, including different screen views
• Advanced filtering tools for clearer target identification
• Built-in obstacle avoidance guides you around obstacles
• On-board GPS with optional high-precision GNSS integration
• Real-time grid and line scan modes
• EKKO_Project™ software compatibility for post-processing and 3D visualization

Ideal For:

• Large utility locating firms
• Infrastructure inspection teams
• Researchers and universities
• Consultants requiring deliverable-grade subsurface maps

Benefits:

• Industry-leading data clarity
• Enhanced workflows and documentation
• Ideal for complex, multi-utility environments

LMX Series Comparison Chart

Real-World Use Cases

Utility Detection Before Digging

Before installing fences, doing directional boring, or laying new infrastructure, contractors use the LMX150 and LMX200 to detect existing buried utilities and avoid costly strikes.

Municipal Infrastructure Surveys

Local councils use the LMX200 to perform non-invasive mapping of buried pipes, stormwater networks, and old sewer systems in preparation for urban redevelopment.

Environmental Site Assessments

Environmental consultants use the LMX150 to scan brownfields, detect subsurface tanks, or identify geological anomalies before remediation or soil testing.

GPR vs. Other Locating Technologies

GPR stands out as the most versatile and comprehensive subsurface locating method when precision and material diversity matter.

Choosing the Right LMX Model for Your Needs

• Choose LMX100 if you’re an entry-level utility locator or contractor looking for a reliable and budget-friendly GPR solution.
• Choose LMX150 if you need GPS logging, better data retention, and moderate post-survey reporting functionality.
• Choose LMX200 if your work requires advanced data analysis, report-ready deliverables, or integration with EKKO_Project software and 3D mapping.

Conclusion

Ground Penetrating Radar has transformed how industries approach subsurface challenges. From safety and compliance to mapping and analysis, GPR delivers unmatched efficiency. With Sensors & Software’s LMX100, LMX150, and LMX200, users get scalable GPR systems tailored to every project size — from simple utility locating to advanced geophysical exploration.

Whether you're protecting lives by avoiding utility strikes, improving infrastructure planning, or conducting complex environmental surveys, the LMX series offers precision, performance, and peace of mind.
