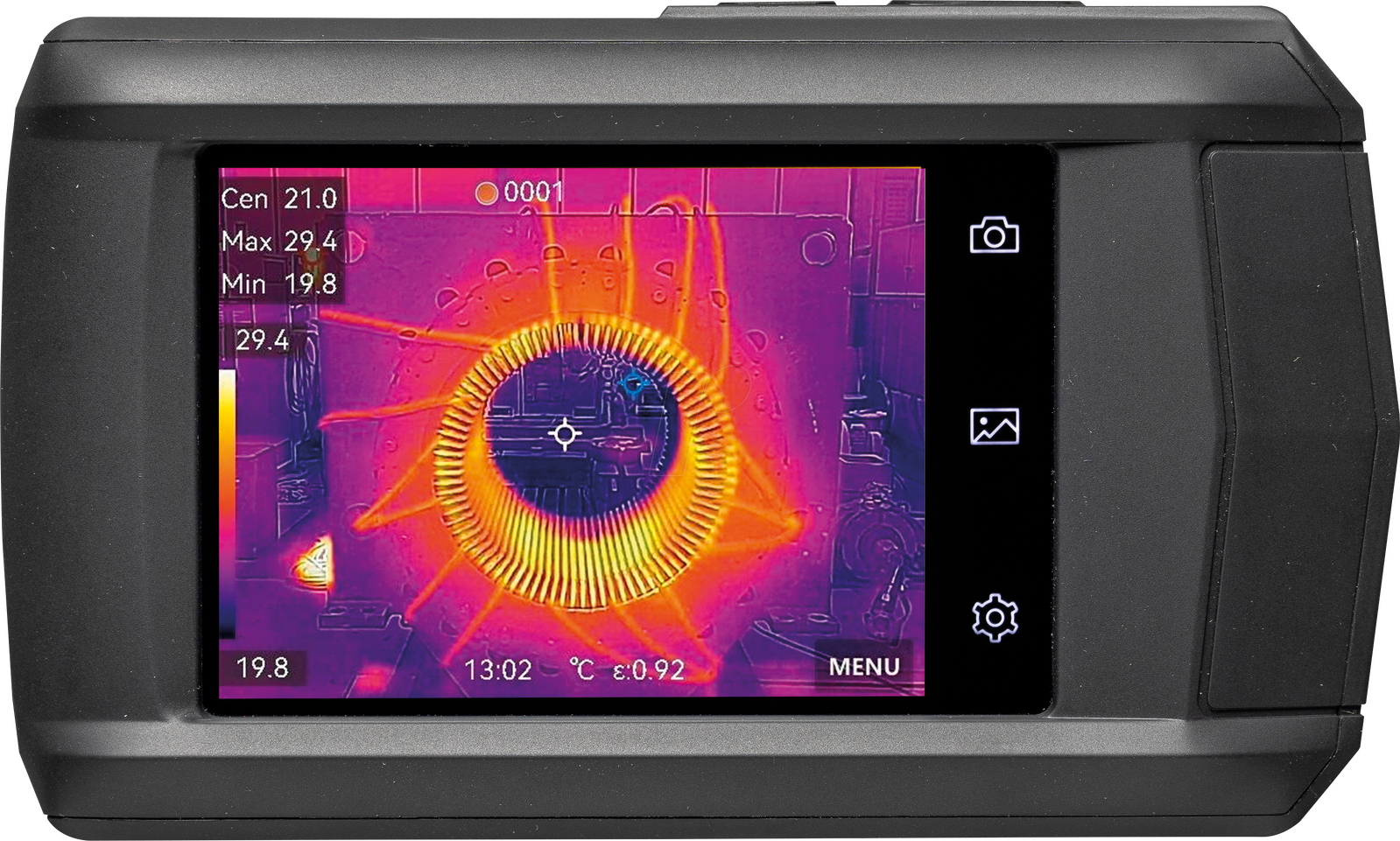

The Benning TC30 is a pocket sized, fully functional thermal imaging camera, which is both compact and robust, but also containing a host of advanced features needed to identify potential problems in the field. With the Benning TC30, you are able to find moisture problems, diagnose electrical and mechanical faults, plumbing issues, find hot spots in switchboards and look for pest problems, air leaks and energy losses in buildings. The TC30 allows you to save both thermal and visual images in it's memory, then easily adjust them and compile professional reports for customers in just a few easy steps.

The Benning TC Analyser software provided with the Benning TC30 allows the thermal camera to transfer data directly from the thermal camera to a PC for analysis and reporting, plus the additional WiFi allows the TC30 to seamlessly integrate with the Benning TC-Image Link app (available for both Android and iOS), which allows live viewing, download, analysis and storage of images on to a mobile device, including easy sharing of reports and images whilst on site with key personnel.

Although it is small, the Benning TC30 offers a number of measurement functions for professional users. A spot meter is displayed and the maximum and minimum temperature, to show which part of the image is hottest or coldest, aiding to fast diagnosis of thermal anomalies, and auto level and span is also added to the Benning TC30, which allows the camera to automatically adjust the images level and span, optimising the image and bringing out more subtle details. These features reduce the amount of time spent on making adjustments to the thermal camera and help to reduce diagnostic time. Additionally the TC30 thermal imaging camera also boasts 5 image modes including thermal image, visual image, blending, fusion, picture in picture and 8 colour palettes.

To keep the design of the Benning TC30 both compact and uncomplicated, it uses a new 3.5" intuitive touchscreen, which gives an experience similar to a touch screen smartphone or tablet, allowing all key functions and menus to be accessed right there on the screen. The Benning TC30 also includes auto orientation, ensuring that the image is the right way up, as is the measurement data, regardless of whether the TC30 is being used in landscape or portrait orientation.

When using the Benning TC30 thermal imaging camera in macro mode, with the optional macro lens, thermal imaging of very small objects (for example electronic components or extremely small temperature anomalies) can be performed.

Key Features:

Compact, and fully featured thermal imaging camera, designed to fit into a shirt pocket
Low cost puts the Benning TC30 within the range of more budgets
256 x 192 true infrared resolution (49,152 temperature pixels)
Improved thermal sensitivity (NETD) of <40mK (0.04°C)
Fast 25Hz refresh rate
Measure temperatures from -20°C to +400°C
Macro mode (requires optional add on lens) for imaging small objects
8 megapixel digital camera with 4x digital zoom captures visual images at the same time as thermal images
3.5 inch (8.9cms) touchscreen
Auto and Manual Level/Span feature
Multiple Image modes (Thermal, Visual, Blending, Fusion, Picture in Picture)
8 colour palettes
Auto detection of hot and cold spots
3 Capture modes (single image, time interval of 1 to 60s or continous up to 9 images)
Lightweight, pocket-sized design
Wi-Fi connection to mobile devices (Android and iOS) with Benning TC-Image Link App
USB-C port for connection to PC via Benning TC Analyser software
Integrated 16GB flash memory holds up tof 60,000 images or 54 hours of video
Rechargeable lithium-ion battery (4 hours)
IP54 rated
Drop tested up to 2m

PLEASE NOTE THAT WE SUPPLY THE TC30 WITH AN AUSTRALIAN CHARGING PLUG
