Overview

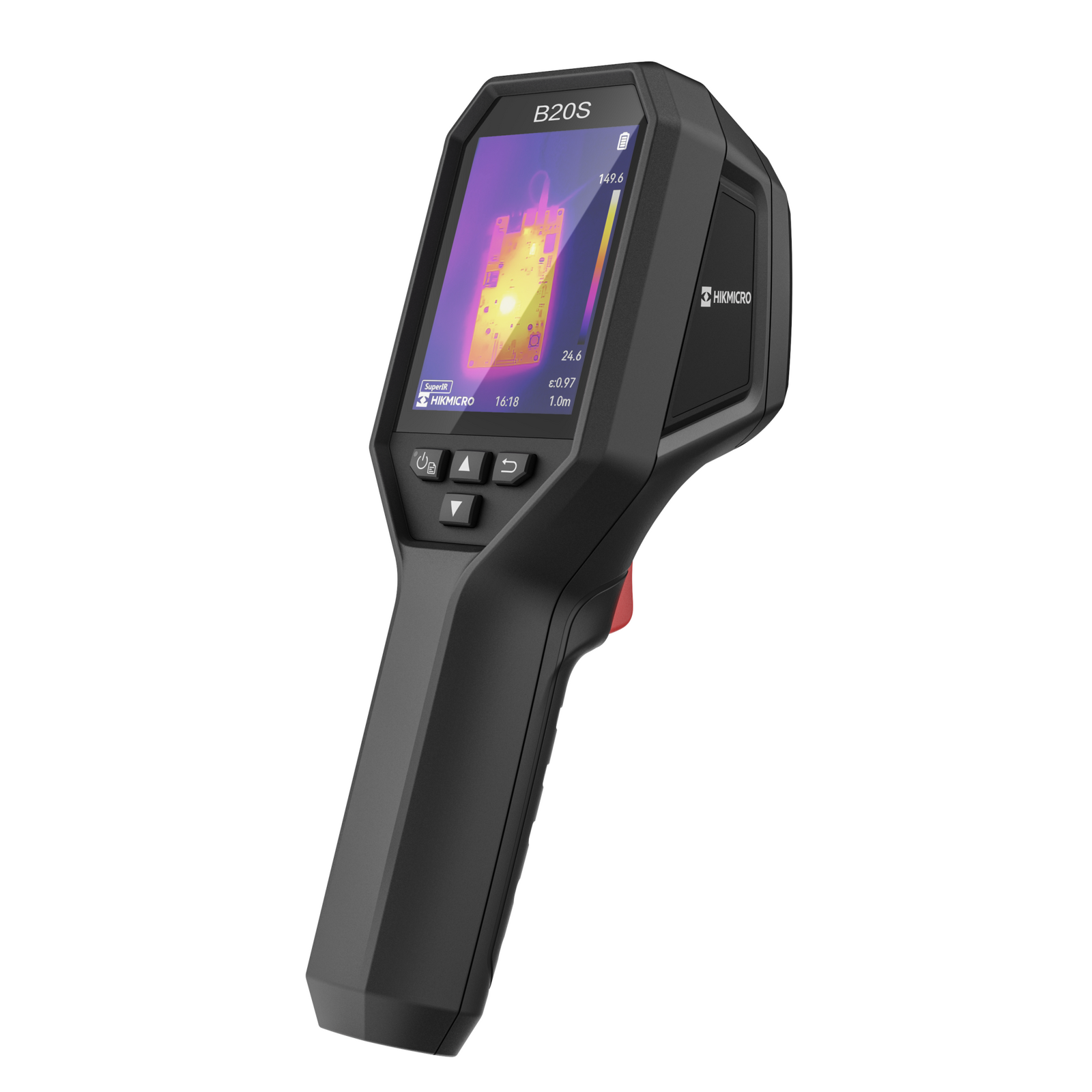

The HIKMICRO B20S is a powerful, professional-grade infrared thermal imaging camera engineered for electrical, mechanical, building, and HVAC diagnostics. Offering crisp thermal images, a wide temperature measurement range, and integrated visual imaging, the B20S is built to identify faults, prevent downtime, and enhance safety across a range of industrial and commercial applications.

Designed with field usability in mind, the B20S combines high thermal sensitivity, rugged construction, and smart features in a compact, handheld design. Whether you’re detecting heat loss, overloaded circuits, or mechanical friction, this camera delivers reliable insights with speed and precision.

Key Features of the HIKMICRO B20S

1. High-Resolution Thermal Sensor

  • 256 × 192 IR resolution (49,152 pixels)
  • Provides clear and detailed thermal images to accurately detect small temperature anomalies.

2. Visible Light Camera & Image Fusion

  • Integrated optical camera (2 MP) for dual-spectrum imaging
  • Supports thermal, visual, and fusion modes (including picture-in-picture) for better situational awareness and documentation.

3. Wide Temperature Measurement Range

  • -20°C to +550°C
  • Ideal for applications ranging from residential inspections to industrial maintenance and high-voltage equipment monitoring.

4. Superior Thermal Sensitivity

  • NETD < 40 mK
  • Detects even the slightest differences in temperature for precise diagnostics and early fault detection.

5. Super IR for Enhanced Thermal Clarity

  • HIKMICRO's SuperIR image enhancement technology upscales the resolution of captured thermal images to 640 x 480 (307,200 pixels)
  • Significantly improves thermal image quality. It also provides a smooth 25 Hz image frequency for live viewing and photo capture

6. Intuitive 3.2” LCD Touchscreen Display

  • High-brightness 640 × 480 LCD
  • Touch interface makes navigation fast and easy, even while wearing gloves.

7. Professional Analysis Tools

  • Supports multiple spot measurements, area boxes, and isotherms
  • Analyze thermal data in real-time to make informed decisions on-site.

8. Voice & Text Annotations

  • Easily document inspections with voice notes and onscreen text comments
  • Enhances report quality and reduces the chance of miscommunication or oversight.

9. Rugged and Field-Ready Design

  • IP54-rated housing protects against dust and water splashes
  • Drop-tested to 2 meters for reliable performance in harsh environments.

10. Long Battery Life & Fast Charging

  • Up to 6 hours continuous operation
  • Rechargeable Li-ion battery with Type-C fast charging support ensures minimal downtime.

11. HIKMICRO Analyzer Software Compatibility

  • Export and analyze thermal images using the free HIKMICRO Analyzer desktop software
  • Create comprehensive inspection reports with image comparison, annotations, and trend analysis.

12. Wi-Fi Connectivity

  • Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.

Technical Specifications

  Feature

  Specification

  Thermal Resolution

  256 × 192 pixels

  Thermal Sensitivity (NETD)

  < 40 mK (@25°C, F#1.0)

  Temperature Range

  -20°C to +550°C (-4°F to +1022°F)

  Accuracy

  Max. (±2°C or ±2% of reading)

  Frame Rate

  25 Hz

  Field of View (FOV)

  50° × 37.2°

  Minimum Focus Distance

  0.3 m (thermal), 0.5 m (visual)

  Display

  3.2” LCD (640 × 480 resolution)

  Image Modes

  Thermal, Visual, Fusion, PIP

  Storage

  16GB eMMC internal memory (up to 35,000 images)

  Battery Life

  Approx. 6 hours

  Protection Rating

  IP54, 2 m drop tested

  Weight

  ~380 g

  Dimensions

  221.7 mm × 73.5 mm × 123.8 mm

Ideal Applications

  • Electrical inspections: Detect loose connections, overloaded circuits, and phase imbalances
  • Mechanical diagnostics: Monitor motor bearings, pumps, and gearboxes for overheating
  • Building inspections: Identify insulation defects, air leaks, and moisture intrusion
  • HVAC & plumbing: Evaluate system performance, duct leaks, and pipe blockages
  • Preventative maintenance: Locate hotspots before failure and reduce unplanned downtime

Why Choose the HIKMICRO B20S?

With the HIKMICRO B20S, professionals gain access to a reliable, high-performance thermal camera at a competitive price point. Its robust imaging capabilities, intuitive interface, and smart measurement tools make it the go-to choice for electricians, building inspectors, maintenance teams, and engineers seeking dependable thermal insight.
