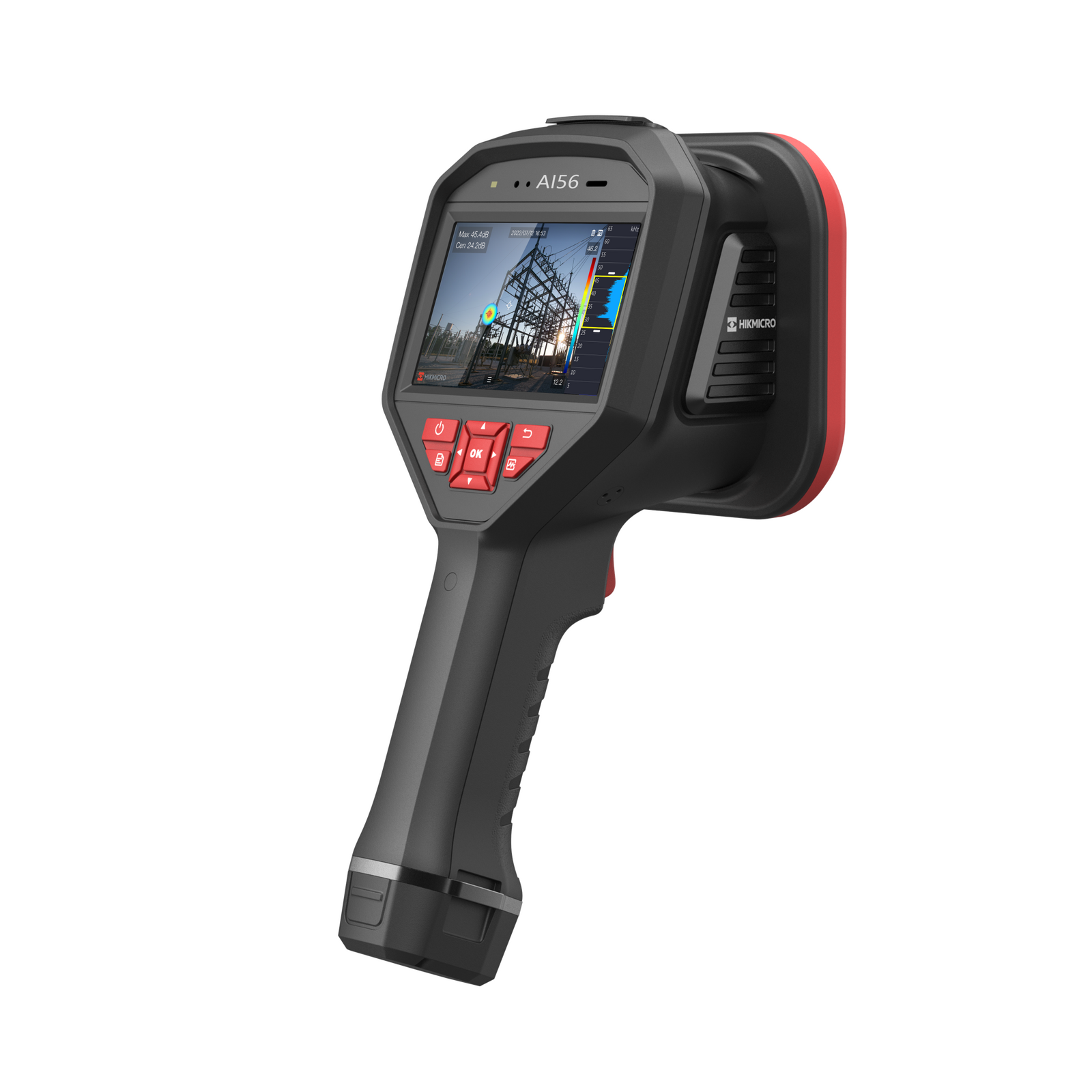

HIKMICRO AI56L Acoustic Imaging Camera
Suitable for Finding Gas and Air Leaks in Equipment.
SKU code: AI56L
If compressed air and industrial gases are among your biggest utility costs, the HIKMICRO AI56L is the most direct way to claw back waste. Purpose-built for leak detection only, it uses a 64-microphone acoustic array and an extended 0–96 kHz bandwidth to visualise even subtle leaks—across lines, manifolds, fittings, valves, and tools—often from the ground and at a distance.
Unlike simple “leak present” indicators, the AI56L calculates leak rate, cost, and severity in real time. That means you leave every route with quantified savings and a prioritised worklist. And with three interchangeable batteries delivering up to 10.5 hours of operation, you can complete full-shift surveys without downtime.
Focused on leaks, optimised for ROI
- Leak-only specialisation: streamlined workflows for compressed air, inert gases, nitrogen, CO₂, vacuum systems, and more.
- Scan more from the floor: 0.3–150 m working distance; 1–16× digital zoom for hard-to-reach areas.
- Quantified results: real-time leak rate and cost estimates drive faster approvals and measurable payback.
- Clear visuals: 4.3″ 800×480 touchscreen with 8 palettes; 5 MP visual camera for crisp overlays.
- Plant-ready: IP54 protection, 1.2 m drop rating, −20 °C to 50 °C; extendable SD storage to 128 GB.
Use cases
Manufacturing & assembly: locate leaks along production lines and end-of-arm tooling. Food & beverage / pharma: protect product integrity and compliance where clean gases are used. Facilities & HVAC: reduce compressor duty cycles and maintenance. Chemicals & refining: detect pressurised leaks from safer standoffs.
Benefits you bank
- Lower energy bills by eliminating compressed-air waste.
- Fast route times versus point-by-point testing, with immediate photo/video evidence.
- Data-driven maintenance supported by Analyzer Acoustic analysis and report export.
- Full-shift endurance: up to 10.5 h runtime (3× batteries) keeps inspections moving.
Key Specifications
Specification | Details |
---|---|
Microphone Array | 64 low-noise MEMS |
Bandwidth | 0–96 kHz (192 kHz sampling) |
Working Distance | 0.3–150 m |
Leak Sensitivity | >0.008 L/min @ 6 bar (0.5 m); >0.013 L/min @ 5 bar (1 m) |
Display & Zoom | 4.3″ LCD, 800×480; 1–16× digital zoom; 8 palettes |
Visual Camera | 5 MP (2688 × 1944) |
Storage | ≈20,000 images; ≈60 h video (MP4); SD expandable to 128 GB |
Connectivity | Wi-Fi (2.4/5 GHz), USB-C, HDMI-D |
Ruggedness | IP54; 1.2 m drop; −20 °C to 50 °C; <95% RH |
Battery | Approx. 3.5 h ×3 (total up to 10.5 h); Li-ion, interchangeable |
Size / Weight | 292.2 × 127 × 110.7 mm; ≈940 g |
What’s included / software
Full compatibility with HIKMICRO Analyzer Acoustic for post-route analysis and report creation simplifies documentation and continuous improvement programs.

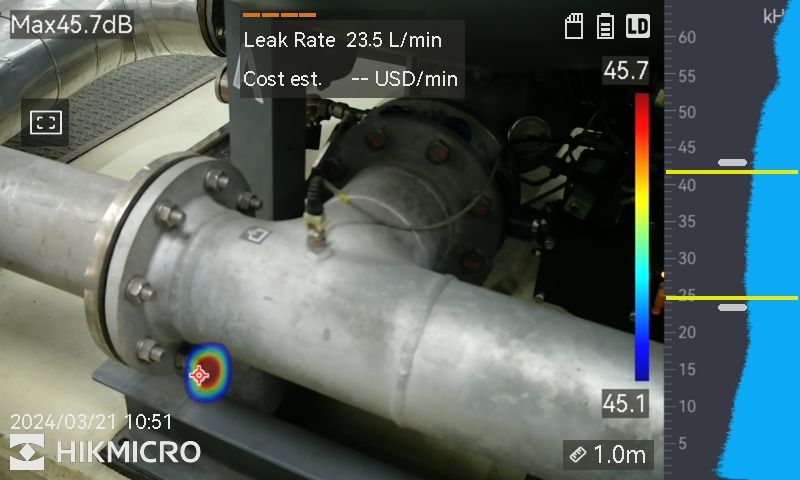

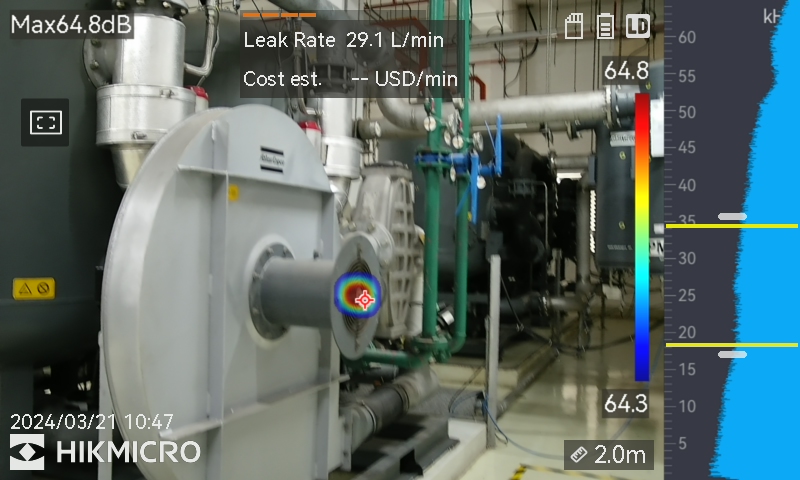

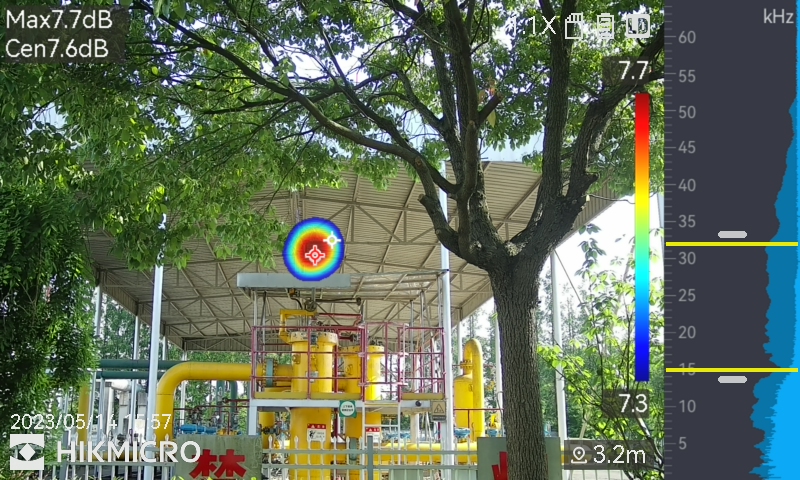

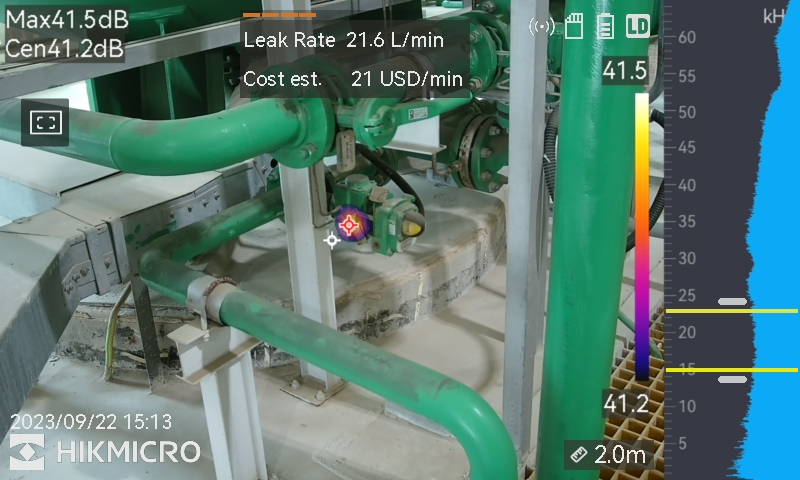

Images from the AI56L
Who should buy it
Operations focused on energy reduction and sustainability, maintenance teams tasked with compressed-air system performance, and plants needing long battery life for full-shift surveys.
Ready to stop paying for leaks? Add AI56L to your cart or ask for further details from our product specialists.
